Next-Gen Ranger Raptor & Wildtrak Behind Grille Light Bar Kit
SKU: BGLB-FRM-KIT
Product Category: Driving Lights
$1,295.00
- Widr® Optic – This unique reflector delivers market-leading output, achieving huge distance with excellent spread
- Combined usable light – 1300m
- No cutting or drilling required
- Solid fitment that doesn’t shake on rough roads
- Designed and made in Australia for the toughest environments on earth
- 5-year warranty
Email when stock available

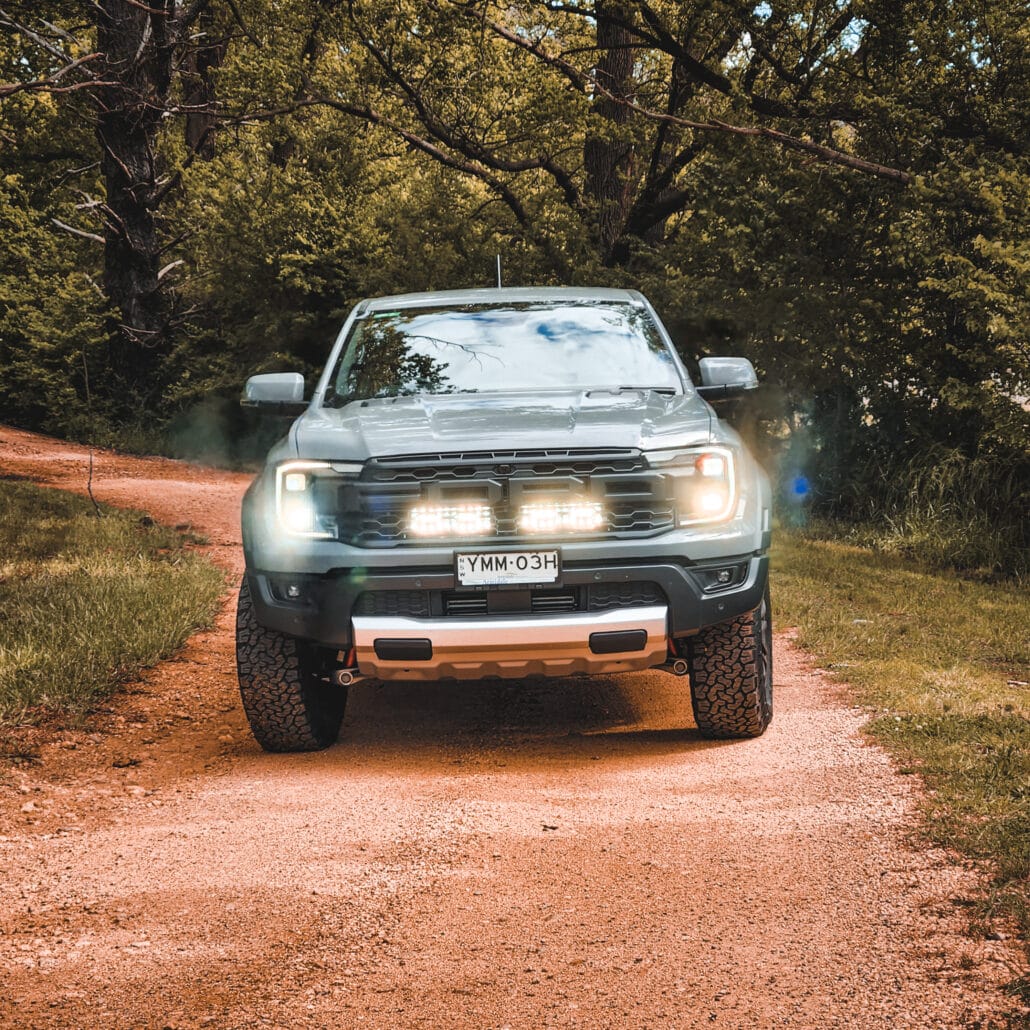

Specifically designed for the Ranger Raptor, this integration kit has everything you need to integrate the power of Ultra Vision with your vehicle, without having to invest in a bull bar.
This kit allows you to easily conceal two NITRO Maxx 105W 13″ LED Light Bars to your ranger with no cutting or drilling required! The bracket system is cleverly engineered so that it mounts to existing points on the body. Only the grille shroud beneath the bonnet needs to be removed temporarily for access.
The kit comes complete with a high-beam plug & play wiring connection that wires directly into the overhead auxiliary switches.
This comprehensive kit comes complete with:
• 2 x NITRO Maxx 105W 13″ LED Light Bars (5700k colour temperature)
• Purpose-built Ranger light bar brackets, 4mm steel, powder coated black
• High-Beam Plug & Play wiring loom
• Complete twin wiring harness including inline fuse & cabin switch
• Mounting hardware
• Fitting instructions
| 105W NITRO LIGHT BAR SPECIFICATIONS | |
|---|---|
| Wattage | 100 Watts |
| Light Source | 20 x 5w LED’s |
| Light Output – Raw | 12,320 Lumens |
| Light Output – Effective | 8,865 Lumens |
| Voltage | 9-36V |
| Current Draw | 8A |
| Operating Temperature | -40 to 80 Deg C |
| Waterproof Rating | IP68 |
| Connector Type Plugs | 2 Pin std Deutsch |
| Housing | 6063 T5 Aluminium |
| Outer Lens Construction | Polycarbonate |
| Brackets | Sliding Base / Side Mounts |
| Colour Temperature | 5700K |
| Lifespan | 50,000 Hours |
| Dimensions | 324 x 92 x 84mm |
| Net Weight | 1.9 kg |
| Beams Available | Combo and Widr |
| Warranty | 5 Years |
| Harness Included | Yes |
| Part Number |
Additional Information
| Manufacturer Part Number | BGLB-FRM-KIT |
|---|---|
| UPC | 9350475024744 |
| Warranty | 5 Years |
| Vehicle Compatibility | |
| Light Color | White LED 5700k |
